Part Designs

Molded Flange:

This part was designed to utilize SolidWorks parametric equations to dictate the number and spacing of the fins and holes in the part.

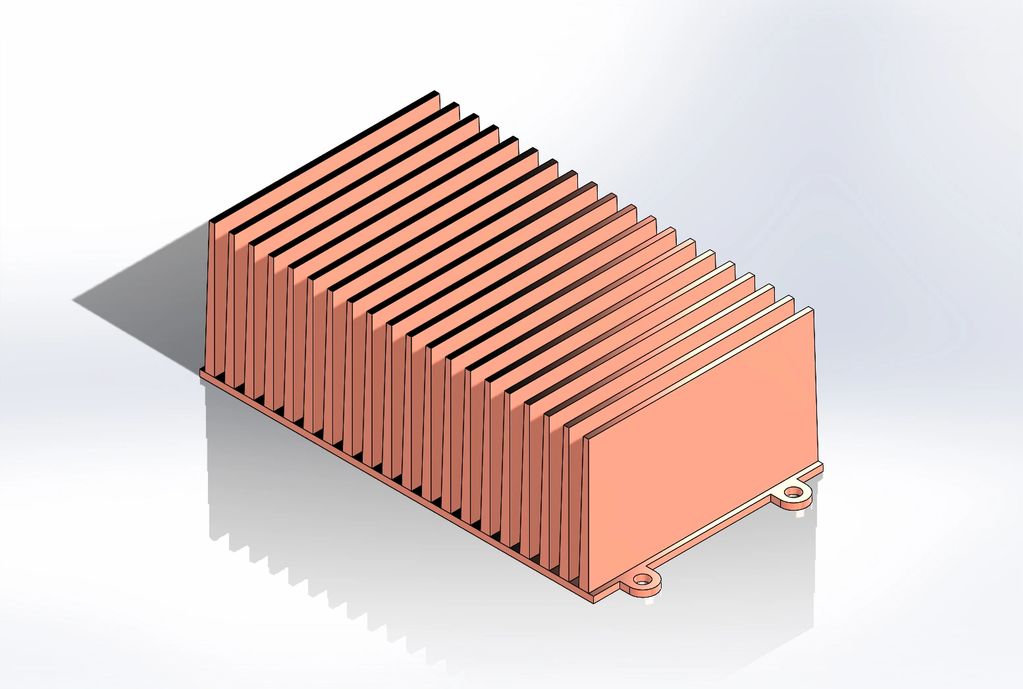

Heat Sink:

This part also makes use of parametric equations to determine the number of fins and their spacing. In designing this part, a sensor was also added to figure out how much of the material is exposed to the air to determine how effectively the part could conduct electricity.

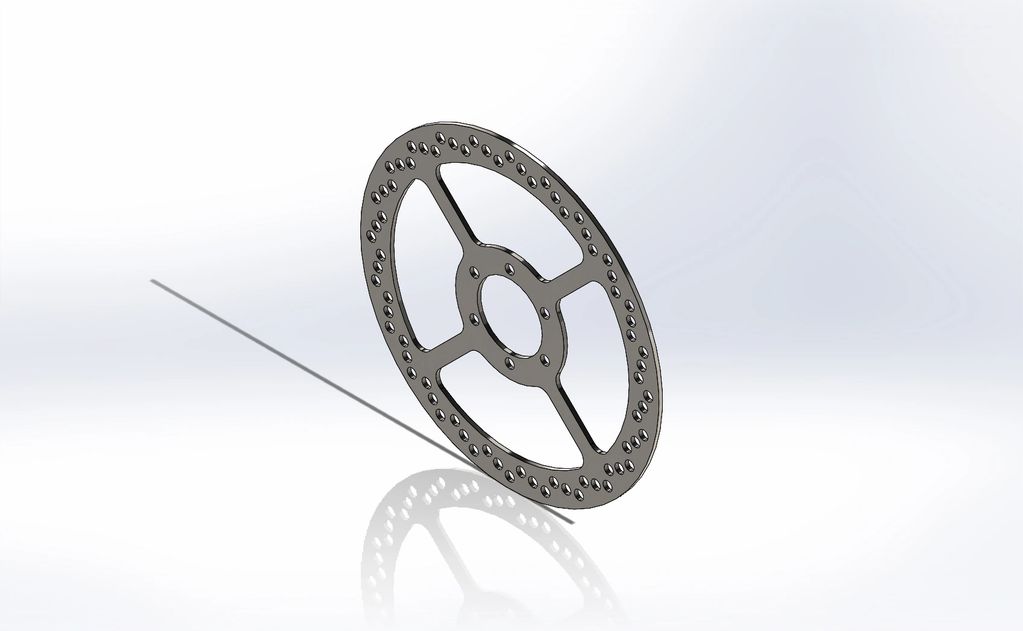

Steel Bicycle Disk Brake Rotor:

This brake rotor makes use of circular patterns to determine the locations of the holes in the part.

Flange:

This part demonstrates use of extruded and revolved geometry as well as application of material properties.

Hinge:

This hinge is a part of an assembly for a small door, it utilizes revolved features and linear patterns.

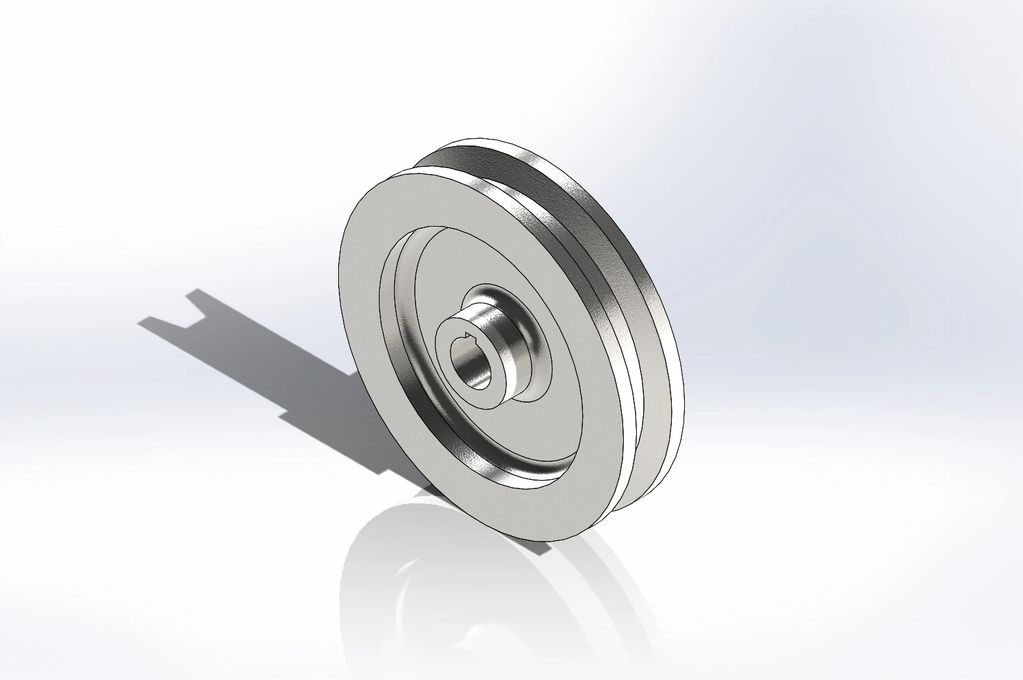

Pulley:

This pulley also makes use of extruded and revolved geometry as well as the application of material properties.
